INTRODUCTION

Classes Overview

The following CFI classes are included:

• ANXTime: This class contains a time instant given as an absolute orbit number plus the time elapsed since the ANX
• OrbitFunc: Class grouping several static functions
• OrbitId: Class that stores the orbit data
• RelANXTime: This class contains a time instant given as a relative orbit number plus the time elapsed since the ANX
• RelTimeSegment: This class contains a time interval given by a start RelANXTime and a stop RelANXTime
• TimeSegment: This class contains a time interval given by a start ANXTime and a stop ANXTime

and the following auxiliary classes (defined in OrbitData.h):

• ANXExtra: ANX extra information
• ValidityTime: Validity time
• OrbitInfo: Information of orbits
• StateVectorInfo: Information of state vector
• StateVectorExtraInfo: Extra information of state vector
• AnxInfo: Ascending node information
• RefOrbitInfo: Reference orbit information
• OsfRecords: Orbital changes records
• OrbitalInfo: Orbital information

Among these classes there are:

• CFI classes with methods allowing accurate computation of orbit state vectors, either at ascending node or (by propagation) at any point in the orbit of any Earth Observation satellite. The orbit propagation may be performed based on different propagation models. The initial set of models supported are:
  • Mean Keplerian model
  • TLE model
  • Numerical model
  • Spot model
  It includes an interpolator and orbit propagators.
• CFI classes with methods required to compute the orbit scenario file, used for Earth Observation mission planning purposes, and several orbit files useful for testing purposes (Predicted Orbit File, Restituted Orbit File, DORIS Navigator Files).

The following sections summarize the set of methods in classes of this library:

Orbit Initialisation

Before doing any orbit calculation, the orbit should be initialized using the corresponding constructor of OrbitId class or the corresponding init methods. The possibilities are:

• Generate a cartesian state vector around the true ascending node crossings as a function of the date (processing time), the longitude of the ascending node, the satellite Repeat Cycle Length, the mean local solar time and either the drift in mean local solar time or the inclination. For the Spot model, the routine generates the Spot elements.
• Initializes the orbit using as input a cartesian orbit state vector. The "precise" method allows the introduction of data to propagate an state vector with a numeric propagator.
• Initializes the orbit using a set of files containing the orbital information (state vectors, orbital geometry or TLE data). The "precise" function allows the introduction of data to propagate an state vector with a numeric propagator. The following input file types are accepted:
  • Flight Dynamics predicted ascending node state vectors
  • DORIS Navigator Data
  • FOS Restituted Orbit Files
  • DORIS Preliminary Orbit
  • DORIS Precise Orbit
  • Ascending node state vectors from the Orbit Scenario File
  • State vectors from Spot orbit files
  • TLE files (not for precise propagator)

In all cases an object of the type OrbitId is created. This variable keeps internally the orbit information that will be used for further calculations. That orbit information can be retrieved by calling the following CFI functions:

OrbitId method	Orbit ID data	Condition to get the data
status	Orbit ID initialisation status	Always
satId	Satellite ID	The Orbit ID is initialised
mode	Mode used for the Orbit ID initialisation	The Orbit ID is initialised
getOsv	OSV stored in the Orbit ID	The Orbit ID has bee initialised with state vectors
getAnx	ANX data stored in the Orbit ID	The Orbit ID has bee initialised with state vectors that are not located at the ANX (Restituted orbit files, DORIS Navigator files...)
getOsf	Orbital Geometry data stored in the Orbit ID	The Orbit ID has been initialised with orbit geometry data
getValTime	Validity time interval where the Orbit ID can be used except for OrbitId.osvCompute and OrbitId.osvComputeExtra	The Orbit ID is initialised.
getPrecisePropagConfig	Configuration for the precise propagator	The Orbit ID has been initialised with numerical propagation

Finally, note that it is possible to create a copy of Orbit ID with xo_orbit_id_clone .

State Vector Computation (Propagation/Interpolation)

The software provides a set of methods to compute orbit state vectors at a given time:

• OrbitId.osvCompute: This software computes the state vector at the requested time. The method used to compute that vector is transparent for the user and depends on the data type used for the orbit initialisation. Propagation is performed when the OrbitId object is initialised with:
  • One Orbit State Vector
  • Orbit Geometry
  • Orbit Scenario File
  • Predicted orbit file (plus an optional DORIS Navigator file)
  • Orbit Event Files TLE files
  Interpolation is used in these other cases:
  • DORIS Navigator Data
  • FOS Restituted Orbit Files
  • DORIS Preliminary Orbit
  • DORIS Precise Orbit

Ancillary Results Computation

• OrbitId.osvComputeExtra: This software returns ancillary results, i.e. mean and osculating Keplerian orbit state vectors, satellite osculating true latitude, latitude rate and latitude rate-rate, Sun zenith angle and many more.

Time/Orbit Transformation

• ANXTime.timeToOrbit: This software calculates the absolute orbit, number of seconds and number of microseconds since ascending node that corresponds to a given time in processing format.
• ANXTime.orbitToTime: This software calculates the time, in processing format, that corresponds to a given absolute orbit, number of seconds and number of microseconds since ascending node.

Orbit Information Parameters

• OrbitId.getOrbitNumbersFromAbs: This software calculates the relative orbit, the phase number giving as input an absolute orbit number.
• OrbitId.getOrbitNumbersFromRel: This software calculates the absolute orbit number giving as input a relative orbit number and its cycle number.
• OrbitId.getOrbitNumbersFromPhase: This software calculates the absolute orbit number, the relative orbit, the phase number giving as input a phase number.
• OrbitId.getOrbitInfo: This software calculates orbit related parameters providing as input the absolute orbit number.

File Generation

• OrbitFunc.genOsf: generates the orbit scenario file with user provided inputs.
• OrbitFunc.genOsfAppendOrbitChange: adds an orbit change to a previously generated OSF.
• OrbitFunc.genOsfChangeRepeatCycle: adds an orbit change for a given target orbit to an existing OSF.
• OrbitFunc.genOsfAddDriftCycle: adds an orbit change for a requested orbit with a particular ascending node longitude and an orbit for the manoeuvre.
• OrbitFunc.genPof: generates a Predicted Orbit File from several different reference input files.
• OrbitFunc.genRof and OrbitFunc.genRofPrototype: generates a Restituted Orbit File from several different reference input files.
• OrbitFunc.genOef generates an orbit event file from an orbit scenario file and a predicted orbit file.
• OrbitFunc.genDnf: generates a DORIS Navigator File from several different reference input files.
• OrbitFunc.genTle: generates a TLE file from a Predicted Orbit file.

Check Orbit files

• OrbitFunc.checkOsf: checks the continuity between the last orbit of an orbital change and the next orbit in an orbit scenario file.
• OrbitFunc.checkOef: checks the consistency between the list of the orbital changes and the list of orbit state vectors in an orbit event file.

State Vector Computation Calling Sequence (Propagation/Interpolation)

A complete propagation sequence consists of:

• A call to any of the initialization routines for OrbitId, OrbitId.init, to generate the internal data necessary for whatever calculation involving orbits.
• An optional call to OrbitId.osvComputeExtra to calculate any desired ancillary result related to the initializing state vector.
• A call to the OrbitId.osvCompute function to compute the orbit state vector at a requested time.
• To obtain some ancillary results associated to the computed OSV, the user might call the OrbitId.osvComputeExtra function.
• At the end of a sequence the memory is freed when the OrbitId object is destroyed.

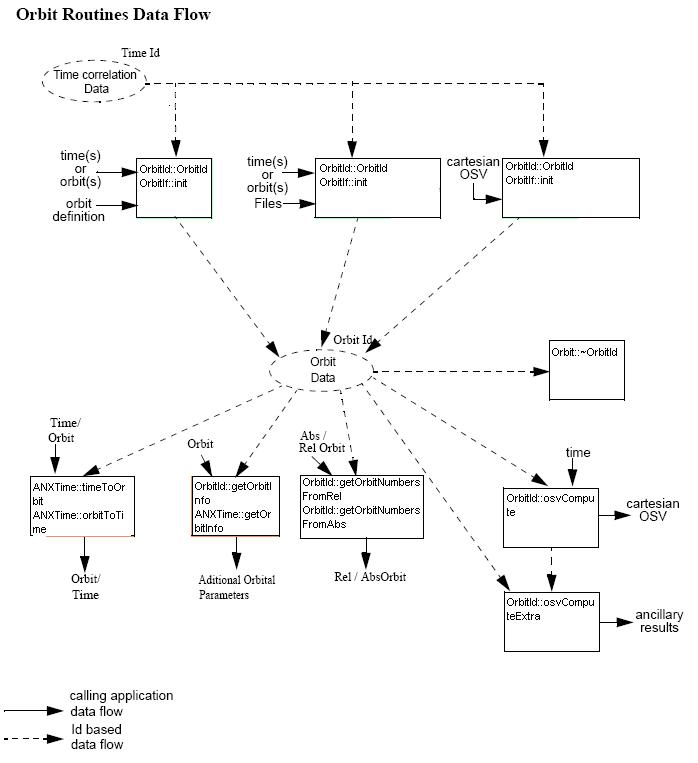

The possible propagation sequences of calls allowing to produce an orbit state vector are shown in next figure:

Time/Orbit Transformation and Orbit Information Parameters Calling Sequence

A complete time/orbit transformation and orbit information parameters sequence consists of:

• A call to any of the initialization routines for OrbitId, OrbitId.init, to generate the internal data necessary for whatever calculation involving orbits.
• A call to a time/orbit transformation or an orbit information parameters routine.
• At the end of a sequence the memory is freed when the OrbitId object is destroyed.

The possible time/orbit transformation and orbit information parameters sequences of calls allowing to produce an orbit state vector are shown in previous figure. For further infomation, please refer also to:

• [MCD] for a detailed description of the time references and formats, reference frames, parameters and models used in this document.
• [GEN_SUM] for a complete overview of the CFI, and in particular the detailed description of the Id concept and the error handling functions.

File Generation Calling Sequence

The calling sequence for the file generators consists of:

• Initialization of TimeCorrelation and ModelId object
• One call to the generation method providing the input parameters. For OrbitFunc.genPof, OrbitFunc.genRof, OrbitFunc.genOef and OrbitFunc.genDnf a reference orbit file has to be provided as well.

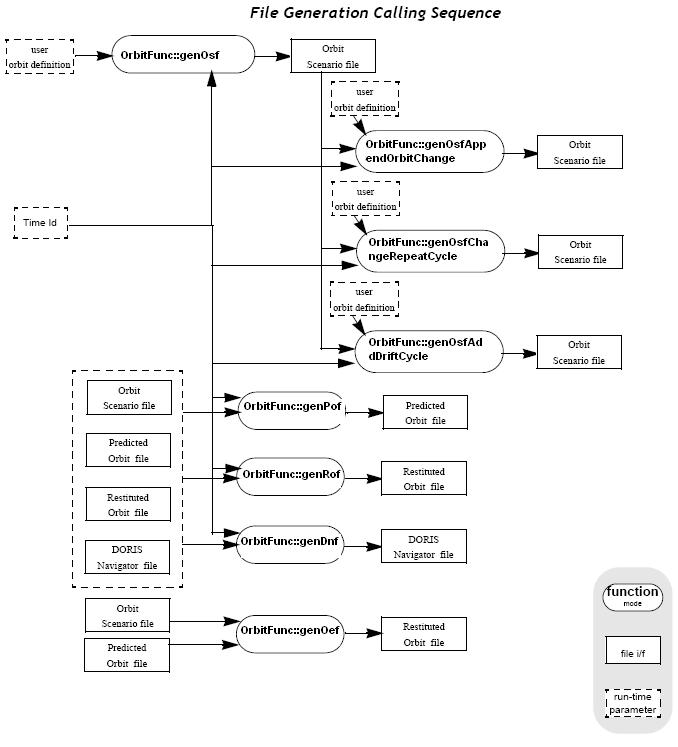

The following figure shows an schema of the calling sequence:

---

LIBRARY INSTALLATION

For a detailed description of the installation of any CFI library, please refer to [GEN_SUM].

---

LIBRARY USAGE

Compilation hints

Note that to use the ORBIT software library, the following other CFI software libraries are required:

• EE_COMMON
• FILE_HANDLING
• DATA_HANDLING
• LIB

Third party libraries:

• POSIX thread library: libpthread.so (Note: this library is normally pre-installed in Linux and MacOS platforms. For Windows platforms, pthread.lib is included in the distribution package, with license LGPL)
• GEOTIFF, TIFF, PROJ, LIBXML2 libraries (these libraries are included in the distribution package. Their usage terms and conditions are available in the file "TERMS_AND_CONDITIONS.TXT" which is part of the distribution package).

To use the CFI ORBIT software library in an user application, that application must import the classes that are going to be used. To do this, it must be taken into account that all CFI classes are part of EECFI package. For instance, to import class OneCfiClass:

• import EECFI.OneCfiClass;

For Java to find the classes, the jar files where they are defined must be included in the CLASSPATH environment variable. For Orbit library, CLASSPATH must be something like:

• WINDOWS: CLASSPATH=jar_directoryEECommon.jar;jar_directoryFileHandling.jar;jar_directoryDataHandling.jar;jar_directoryLib.jar;jar_directoryOrbit.jar;other_class_paths
• Other operating systems: CLASSPATH=jar_directory/EECommon.jar:jar_directory/FileHandling.jar:jar_directory/DataHandling.jar:jar_directory/Lib.jar:jar_directory/Orbit.jar:other_class_paths

where jar_directory is the directory where the jar files are stored.

CFI libraries call C++ native methods. These methods are defined in dynamic libraries, which name and extension depend on the operating system:

• LINUX and SOLARIS: libJLibrary.so
• MAC systems: libJLibrary.jnilib
• WINDOWS: JLibrary.dll

If these libraries are stored in cfi_lib_dir, this directory must be included in the path where the system looks for dynamic libraries (LD_LIBRARY_PATH in LINUX and SOLARIS, DYLD_LIBRARY_PATH in MAC systems, PATH in WINDOWS sytem).

Enumerations

Every CFI library has defined constant values that can be used as input for several methods of the classes. They are grouped in a class with the name EnumLibrary. To use them, a static import is recommended:

import static EECFI.EnumLibrary.*;

so the constants can be used directly, without prefixing with package name and class name.
You can consult the constants available for this library here.

---

ERROR HANDLING

The error management in Java ORBIT is made throw exceptions, that is, if any error is produced, an exception of type CfiError is thrown and it must be catched putting the code inside a try-catch block.
See [GEN_SUM] to know more about how to handle the CFI errors. For a descripton about the CfiError class and its methods, see [EE_COMMON_SUM].
