Version 1.4.0.6 of SAMIEdit (SAtellite MIssions 3D visualisation application) has been released and can be downloaded here.
Release Notes are available here.
User registration is required. Please find detailed instructions here.
New Features
- It is possible to import ESOV NG mission timelines file (.SCF) to generate time blocks, e.g to display dynamically instrument swath planning segments
- The display of Nadir direction can be enabled / disabled through the camera menu
- AzEl2LonLat plugin’s code that computes the ground stations mask radius has been updated to support MEO satellites (e.g. GPS, Galileo)
- Implementation of version checking with automatic update mechanism (Application —> Check for updates) for application , satellite models and mission files
- Up-to-date mission configuration files and example projects
Bug Fixes
- Cannot select Earth texture when adding time blocks to the timeline
- Cannot select orbit/attitude files if only one file in folder
- Orbit or attitude files that cannot be found during project load prevent the satellites and scenario to be created
OpenSF v3.9.4 has been released and can be downloaded here.
User registration is required. Please find detailed instructions here.
New Features
- Added guarantee that modules start as soon as possible when executed in Iterated/Perturbed-Combined mode
- Enabled Timeline editor as a standalone dialog
- Added “Choose…” buttons to select a file in the user interface
- Enabled customization of scripting language interpreters (e.g. Python, JS)
- Homogenized tab style throughout the application
- Homogenized the behaviour of “Modules” and “Simulations” dialogs
- Upgraded parameters handling to use typified values in both PE and openSF
- Upgraded file parsing to allow all XML attributes to be retained when updating a configuration file
- Updated License related text in the About dialog
Corrections
All Release Notes are available here
OpenSF v3.9.5 has been released and can be downloaded here.
User registration is required. Please find detailed instructions here.
Corrections
All Release Notes are available here
Version 1.7.0 of the DFDL4S Java and C++ Libraries has been released and can be downloaded here.

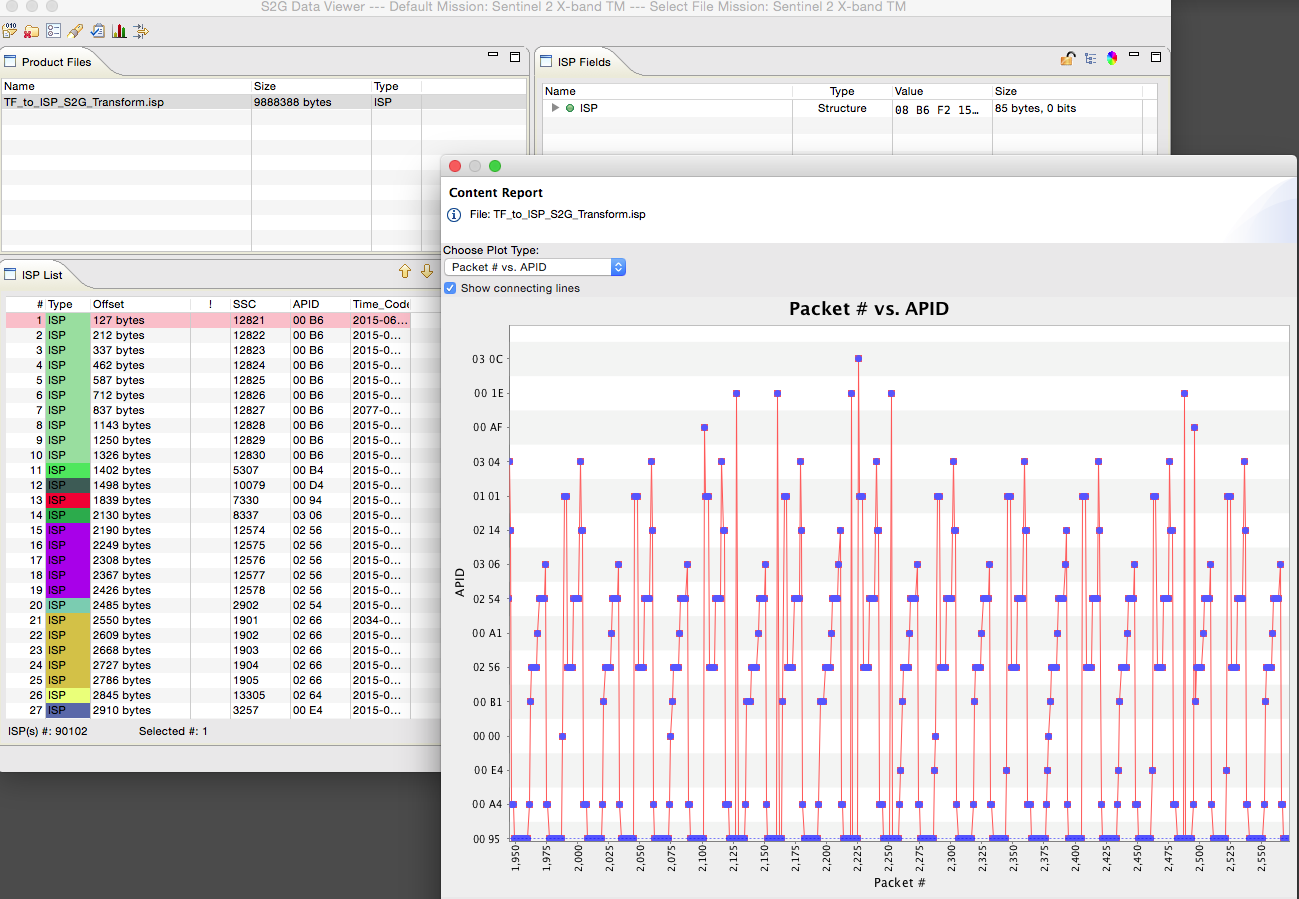

DFDL4S is a generic binary data binding library written in Java and based on the Data Format Description Language (DFDL). DFDL++ provides the same functionality exposing a native C++ API. See more details here.
The following is a summary of the changes in version 1.7.0.
New Functionality and Improvements
- Added support for DFDL variables (dfdl:defineVariable and dfdl:newVariableInstance)
- Added support for Reporting capabilities (including CRC/Reed-Solomon)
- Added support to checking CRC and apply Reed-Solomon Error Correction
- Aligned implementation of occursCountKind=”fixed” with DFDL standard
- Added support for paths to array elements
Bug Fixes
- Corrected faulty instantiation of DataSize objects (C++ only)
- Corrected trimming in StorageInFile detected during Transfer Frame to ISP transformation
- Corrected evaluation of non-integer values in length fields
Release Notes for can be found here.
User registration is required. Please find detailed instructions here.
OpenSF v3.10.0 has been released and can be downloaded here.
User registration is required. Please find detailed instructions here.
New Features and Improvements
Corrections
- Improved sanitization of command line options passed to the modules
- Corrected suffix of Database XML export files
- Corrected resolution of relative path for Module executable
All Release Notes are available here
